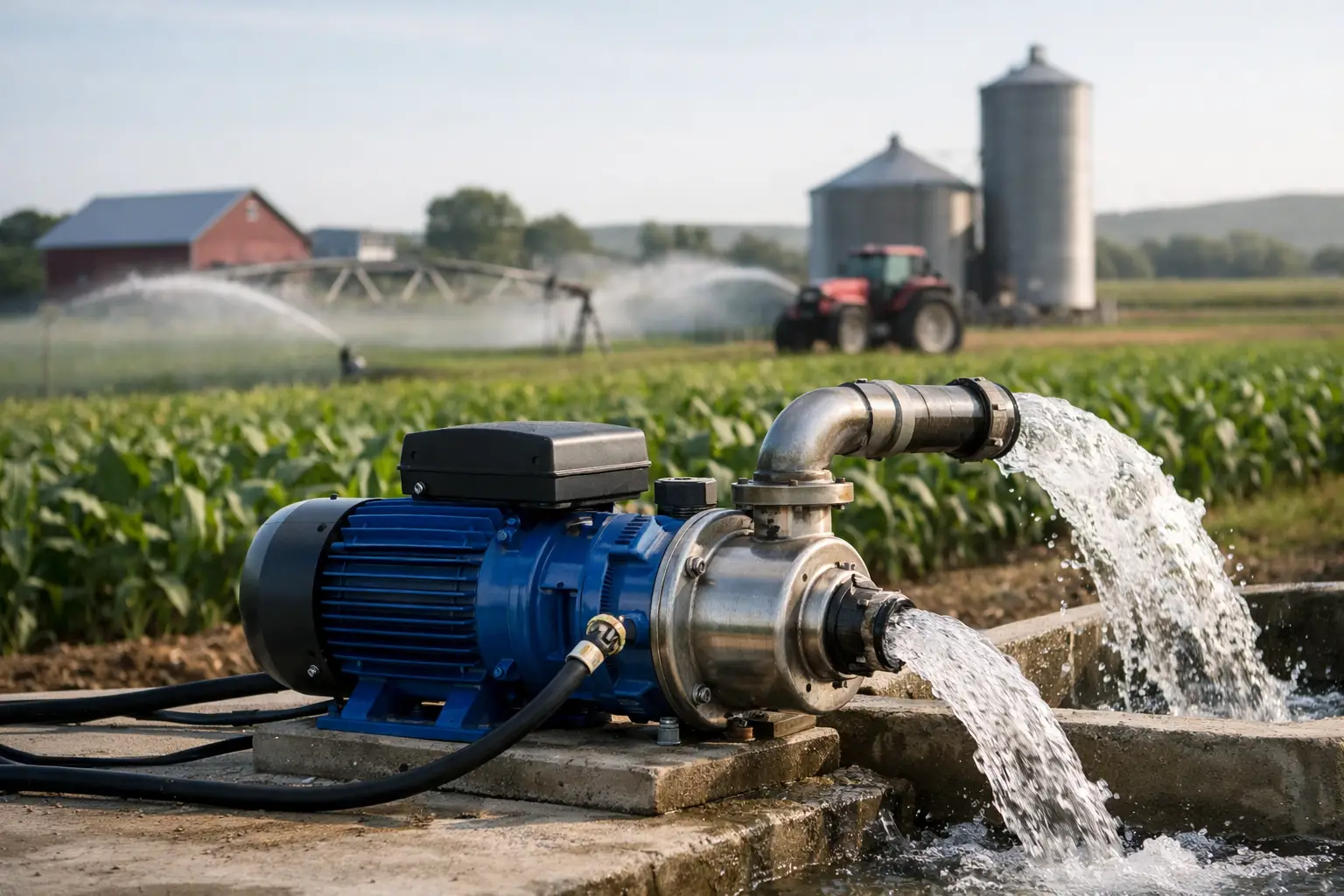

How to Choose a Farm Water Pump That Fits

A pump that fills a trough slowly is frustrating. A pump that is oversized can waste power, cycle excessively and wear out sooner than it should. Knowing how to choose a farm water pump starts with the work it must do on your property, not the biggest pump on the shelf.

For rural properties, water systems often need to serve more than one purpose. You may be moving water from a dam to header tanks, supplying stock troughs across several paddocks, running irrigation, or delivering household water from a bore or rainwater tank. Each job has different flow, pressure and power requirements. Getting those details right before installation helps prevent costly changes later.

How to choose a farm water pump for your setup

Start by mapping the water journey. Identify the source, where the water needs to go, how far it must travel, how high it must be lifted, and how much water is required at the busiest time of day. A pump should be selected to meet this combined demand at its working point, often called the duty point.

The duty point is not just litres per minute. It is the flow rate the pump can deliver at a particular total head. A pump may have an impressive flow rating on its label, but that figure is usually measured with little or no lift. Once it is pushing water uphill through long pipe runs, filters, valves and fittings, available flow reduces.

A practical site assessment should include the water source, pump location, tank and trough levels, pipe layout, existing pipe sizes, power supply and future expansion plans. If a new set of troughs, a larger shed, or irrigation zones are likely in the next few years, account for that now. It may be more cost-effective to install suitable pipework and controls from the outset than replace an undersized system later.

Calculate the water flow you actually need

Flow is the volume of water required over a set time, commonly measured in litres per minute or litres per hour. The right flow depends on the application.

For stock water, calculate demand based on animal numbers, species, seasonal conditions and the number of troughs that may be filling at once. Hot, dry weather can increase consumption significantly. A system designed only around average daily use may leave animals short during peak demand or after a trough float valve has been running for an extended period.

Irrigation demand is usually higher and more immediate. Consider the number of sprinklers or drippers operating in each zone, their individual flow rates, and whether zones will run at the same time. Irrigation is commonly designed in zones precisely because a single pump does not need to supply the entire property at once.

For a house, workshop or farm stay, consider simultaneous use rather than one tap at a time. Showers, toilets, washing machines, garden taps and stock water may draw from the same supply in some systems. A pressure pump that performs well for one bathroom may struggle when the household and farm demands overlap.

It is sensible to allow some capacity above the calculated requirement, but excessive oversizing creates its own problems. Large pumps can cause pressure surging, higher energy use and rapid cycling if paired with small pressure tanks or low-demand outlets.

Work out total head, not just vertical lift

Head is the resistance a pump must overcome to move water. It is measured in metres and has several parts. Static head is the vertical height from the water level at the source to the highest delivery point. Friction head is the pressure lost as water moves through pipework, bends, valves, filters and fittings.

A long run across flat ground still has friction loss. This is particularly relevant on farms where water may travel hundreds of metres to remote troughs or tanks. Undersized pipe creates more friction, forcing the pump to work harder and reducing delivery at the far end of the line.

The source water level also matters. A dam or bore can drop through summer, increasing the lift required. Design around the lowest expected operating water level, not the level after a wet season. For bore systems, consider the drawdown level while the bore is pumping, rather than the standing water level measured before the pump starts.

Pressure requirements need to be included too. A tank filling at the top of a hill needs height, while a sprinkler system needs operating pressure at the outlet. As a rule, 10 metres of head is approximately equal to one bar of pressure, but a pump professional can confirm the appropriate duty point from the full system layout.

Match the pump type to the water source

Different pump designs are suited to different conditions. Choosing the wrong type can lead to poor performance, blockages, loss of prime or premature failure.

• Surface transfer pumps sit above ground and are commonly used to move water from dams, creeks and tanks. They are convenient to inspect and service, but suction lift is limited and the suction line must be airtight.
• Submersible bore pumps operate below the water level and are designed for narrow bores and deeper water sources. They can deliver water from considerable depths, provided the bore yield and pump capacity are properly matched.
• Pressure pumps are suited to tank-fed homes, farm buildings and smaller irrigation or trough systems where consistent pressure is needed on demand.
• Dirty-water or trash pumps are used where water contains sediment, organic material or debris. They are useful for some dam and drainage jobs, but they are not automatically suitable for potable water or pressure supply systems.

Water quality should influence the decision. Sand, silt, algae, iron, salinity and animal-access contamination can all affect pump materials, filters and maintenance requirements. A fine filter may protect a pump and irrigation equipment, but it also adds friction loss and needs regular cleaning. If the source is a creek or open dam, use suitable intake screening and position the intake to avoid drawing sediment from the bottom.

Choose an appropriate power supply and controls

Electric pumps are a practical option where reliable mains power is available. They are generally straightforward to automate with pressure switches, float switches, tank level sensors and irrigation controllers. For remote troughs or tanks, solar pumping can be an effective solution, particularly where running power cables would be costly.

Solar systems need to be sized around winter sunlight as well as summer demand. Rather than relying on batteries to pump after dark, many farm systems use solar power to fill a larger storage tank during daylight hours, then gravity-feed water or use a separate pressure system where required. Storage becomes part of the pump design.

Petrol or diesel pumps can be useful for mobile, seasonal or emergency water transfer. They offer flexibility, but require fuel management, regular servicing and operator attendance. They are less suitable for a permanent unattended stock-water system unless controls, safeguards and maintenance routines are carefully planned.

Dry-run protection is worth considering for bores, rainwater tanks and any source that can run low. Running dry can quickly damage a pump. Float switches, low-water cut-outs and pressure monitoring can help protect equipment, while tank overflow controls prevent water loss and erosion around storage areas.

Do not overlook pipework, tanks and installation

The pump is only one part of the water system. Correct pipe diameter, quality fittings, non-return valves, isolation valves and a suitable pressure vessel all contribute to reliable operation. A capable pump connected to restrictive pipework will not meet its performance potential.

Where pipework crosses paddocks, allow for vehicle traffic, livestock damage, ground movement and frost exposure in colder areas. Clearly mark buried lines and protect exposed sections near troughs, pumps and tank stands. Install isolation valves so individual areas can be repaired without shutting down water to the whole farm.

A correctly positioned pump also makes maintenance easier. It should be accessible, protected from weather where appropriate, well ventilated and installed on a stable base. Electrical connections must be completed by a qualified electrician, and any plumbing work should meet applicable local requirements and water-quality considerations.

When professional pump advice saves money

Pump selection charts can be useful, but they do not replace a proper assessment of flow, head, pipe friction and source conditions. This is especially true for bore pumps, large irrigation systems, mixed domestic and farm supply, or properties with substantial elevation changes.

A qualified rural plumbing and pump specialist can assess the system as a whole, size the pump against its expected duty point, and recommend suitable controls, filtration, tanks and pipework. That approach helps avoid the common cycle of replacing pumps when the underlying issue is actually a blocked filter, poor suction line, undersized pipe or incorrect settings.

The best farm water pump is the one that delivers dependable water where it is needed, through the driest part of the season, without using more power or creating more maintenance than the job requires. Start with accurate site details, allow for sensible growth, and get the system checked before equipment is purchased.
